Lazy-load the Code tab grammar from the Dag's stored language

[pierrejeambrun]

Follow-up to #74633.

Dag importers are pluggable: the YAML importer (#74586), the Go/Java/TypeScript coordinators, and any third-party importer each store their own language id in dag_code.language. Core can't know that list, so hardcoding grammars in the UI means a custom importer (say a json or rust one) gets plain-text Dag source in the Code tab until someone patches the UI.

Monaco already ships a lazy registration for every Monarch grammar it bundles. Registering that instead lets the Code tab highlight whatever language the API returns, fetching a grammar chunk only the first time a Dag source uses it. The UI stops listing grammars and no longer loads the Go/Java/TypeScript/YAML grammars up front for Python-only deployments. Python keeps the patched f-string grammar (#67986), now loaded lazily too.

Unknown ids (for example the "text" placeholder written when a source can't be read) still fall back to plain text.

Python grammar is always loaded when opening the code tab (no python at all is very unlikely). Opening a YAML Dag loads the YAML grammar chunk in addition. (Same for other sdk languages)

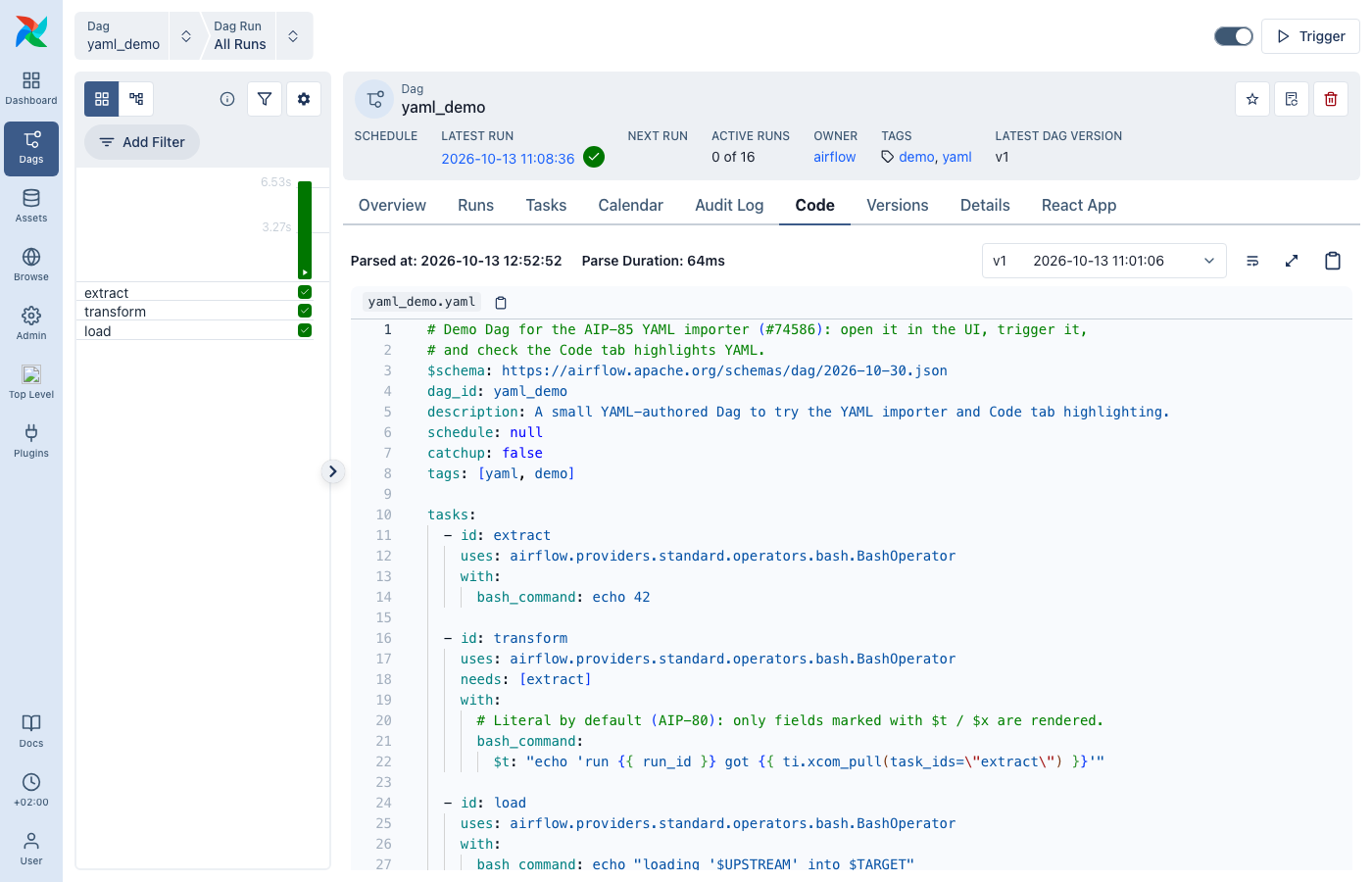

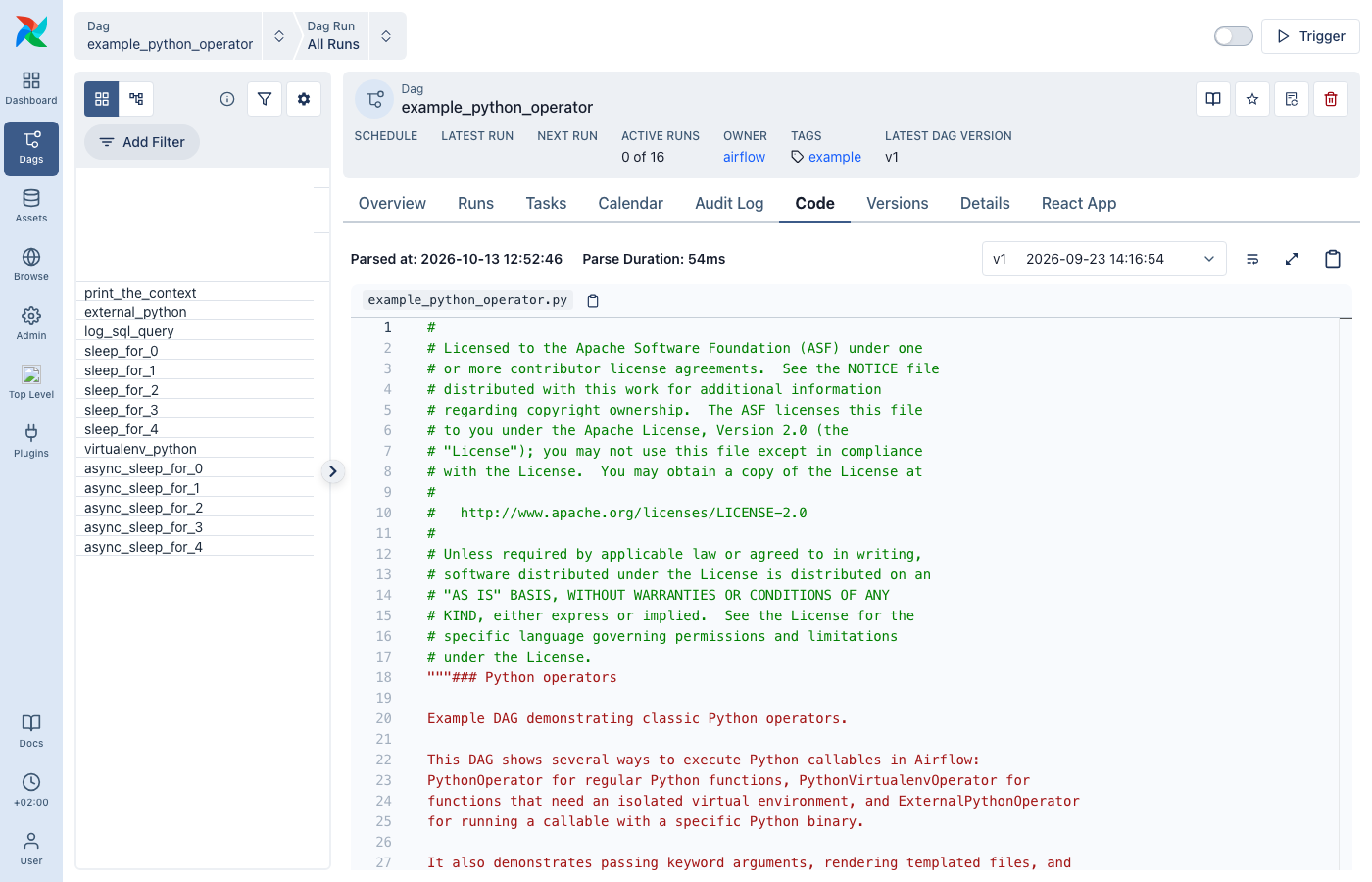

YAML Dag	Python Dag

---

Was generative AI tooling used to co-author this PR?

• Yes — Claude Code (Opus 5.5)

Generated-by: Claude Code (Opus 5.5) following the guidelines

[ashb]

So how does this work with the compiled assets? Do those monaco editr languages still get build and compiled/minified/fingerprinted etc?

[pierrejeambrun]

So how does this work with the compiled assets? Do those monaco editr languages still get build and compiled/minified/fingerprinted etc?

Yes, they go through the normal Vite production build like everything else. They're compiled, minified and fingerprinted, and shipped in ui/dist inside the airflow-core
wheel. Nothing is fetched from a CDN at runtime.

What changes is how they're split into files:

• A small registration file. register.all-.js is about 18 kB (about 4.5 kB gzipped). It lists every language's id, extensions and aliases plus a loader, and is
  loaded with the editor.
• One file per grammar. Each grammar gets its own fingerprinted file, e.g. kotlin-BOotOW0E.js, yaml-CQesJ-Gr.js, python-DMN_ArqD.js. The loader in the registration file
  points at the hashed name: loader: () => import("./kotlin-BOotOW0E.js"). A browser only downloads a grammar the first time it shows a Dag in that language. Because the
  name changes whenever the content does, browsers can cache these files safely.

Before, only five grammar files (Python, TypeScript, Java, Go, YAML) were built, and the editor loaded all of them up front. Now all 89 grammar files are built: about 490
kB raw, about 100 kB gzipped. That's the cost of supporting any language a custom importer reports, but it only adds to the wheel and dist size. A user never downloads
more than the grammars for the Dags they actually open.

[github-actions]

Backport failed to create: v3-4-test. View the failure log Run details

Note: As of Merging PRs targeted for Airflow 3.X
the committer who merges the PR is responsible for backporting the PRs that are bug fixes (generally speaking) to the maintenance branches.

In matter of doubt please ask in #release-management Slack channel.

Status	Branch	Result
❌	v3-4-test

You can attempt to backport this manually by running:

cherry_picker 518f8d2 v3-4-test

This should apply the commit to the v3-4-test branch and leave the commit in conflict state marking
the files that need manual conflict resolution.

After you have resolved the conflicts, you can continue the backport process by running:

cherry_picker --continue

If you don't have cherry-picker installed, see the installation guide.

[github-actions]

Backport successfully created: v3-4-test

Note: As of Merging PRs targeted for Airflow 3.X
the committer who merges the PR is responsible for backporting the PRs that are bug fixes (generally speaking) to the maintenance branches.

In matter of doubt please ask in #release-management Slack channel.

Status	Branch	Result
✅	v3-4-test
