Summary

People coordinating several workstreams in Buzz have to open channels one by one to understand what is underway and who owns it. This adds the first slice of a Workstream Board in Desktop: one place to scan joined workstream channels and open the canonical channel behind any card.

This is PR 1 of a four-PR Workstream Board stack. It is an experiment, off by default, and must be enabled from Settings → Experiments before its sidebar destination appears.

What changes

  • Discovers joined, non-archived channels whose names begin with loganj-ws-; visible but unjoined channels and unrelated channels stay off the board.
  • Reads a small versioned card block from each matching channel's canvas and renders its synopsis, orchestrator, and assignees. Missing or malformed card data degrades only that card.
  • Opens the existing canonical channel when a card is selected rather than creating a second conversation surface.
  • Adds loading, empty, error, responsive-grid, keyboard-focus, and sidebar navigation states for the board route.

Later PRs in the stack add live agent-working state, pull-request status, and waiting-on/sorting behavior. Those signals are intentionally outside this tracer bullet.

Related issue

None found. This is an experiment-gated product spike.

Testing

  • Fresh Blox stack-tip verification at 2892e4aa74fe6f1761550108fdda10e5164c0185, which includes the current foundation head f45289db0c8f729a4f24b633f964a1b0163ac3ce: Desktop 5,143/5,143, Workstream Board 52/52, presence reconciler 12/12, pnpm typecheck passed, and pnpm check completed with zero errors.
  • Relay-backed Playwright capture: 1 passed (19.6s). It continuously demonstrates the board absent while disabled, enabling the experiment, rendering one joined workstream from relay-backed channel/canvas data, and opening its canonical channel. The test also excludes an unjoined matching channel and a joined non-matching channel.
  • The capture workstation used a local, uncommitted browser-bridge adjustment only to let the web test query canvas data from its disposable relay. Independent fresh-head verification confirmed that adjustment is absent from this branch.
  • Member-only discovery, archived-channel exclusion, card parsing, and view-model fallbacks have unit coverage.

Acceptance gates

  • Board route and sidebar entry are experiment-gated off by default.
  • Discovery uses joined channels from a relay and applies exact-prefix, membership, and archive filtering.
  • Cards render the agreed canvas convention and degrade locally on invalid data.
  • Selecting a card opens the canonical channel.
  • Continuous relay-backed demo captured before PR creation.
  • Independent Royal verification passed at the exact PR head with zero findings.
  • Required CI checks are green.
  • Maintainer review is complete.

Demo

The qualifying evidence is one uninterrupted 19.44-second capture (SHA-256 f826b6ee4237c761dec4da55db9bc13bc898a4bbc77dd9a8f6f8d5ae413d171b), attached here as an animated GIF with the original MP4 linked below:

Continuous relay-backed demo: board absent while disabled, experiment enabled, populated card rendered, canonical channel opened

Original MP4 (full quality)

Sampled frames from the same capture:

Experiment off Experiment enabled

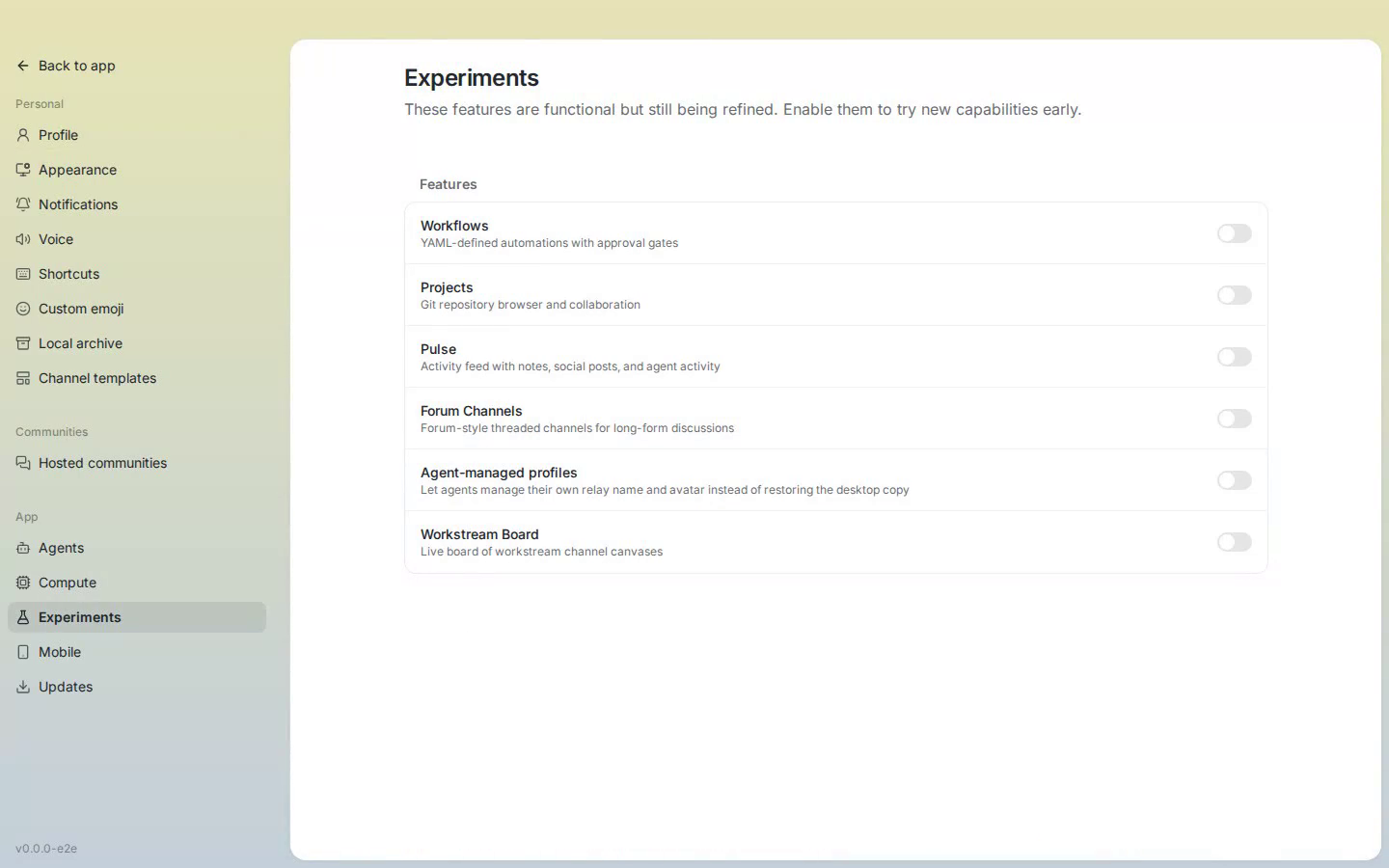

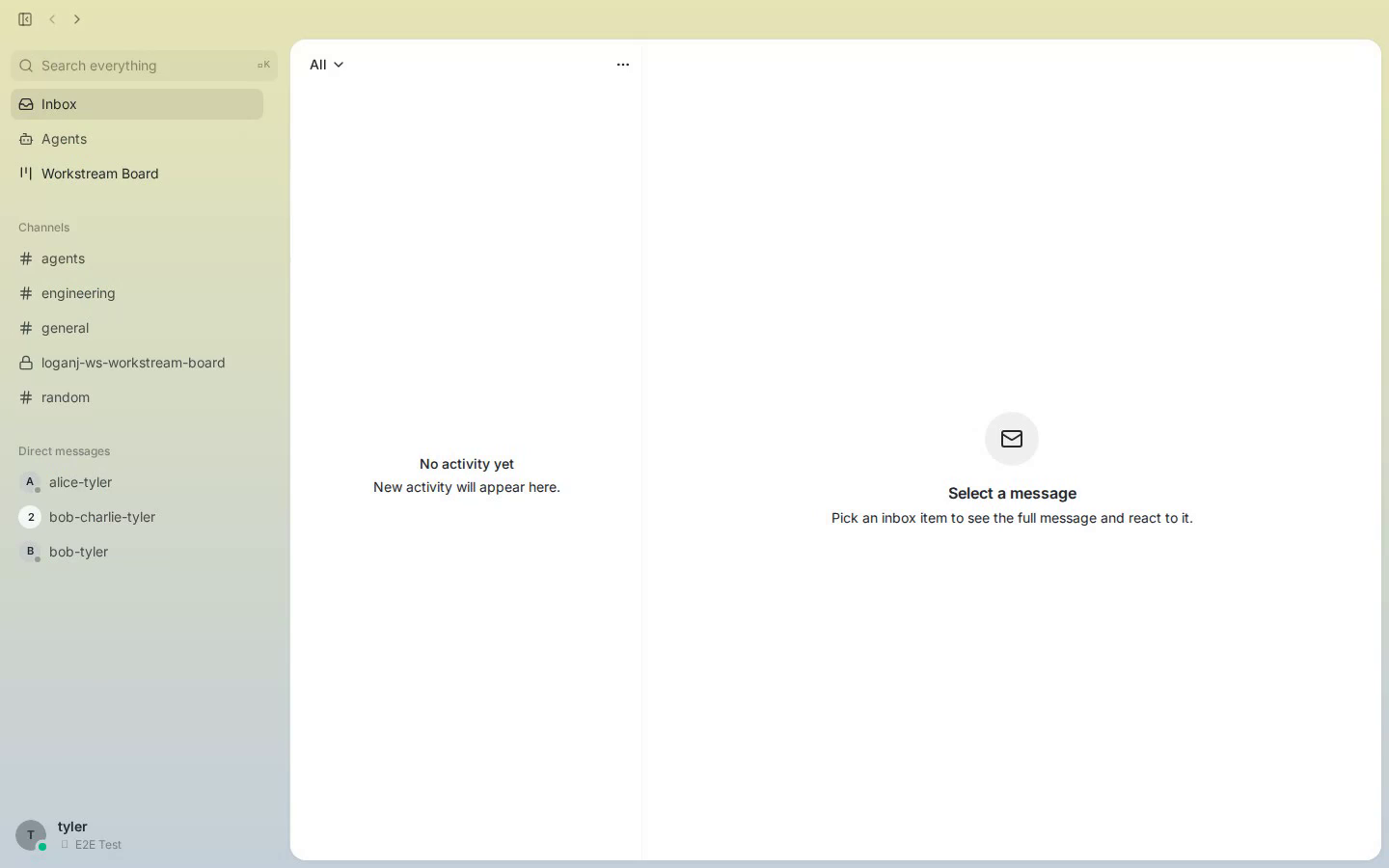

Experiments page with Workstream Board disabled Workstream Board destination visible after enabling the experiment
Relay-backed board Canonical channel
Board showing one populated joined workstream card Canonical workstream channel opened from the card

@loganj loganj mentioned this pull request Aug 18, 2026
Draft
7 tasks
@loganj
loganj marked this pull request as ready for review August 18, 2026 19:05
@loganj
loganj requested a review from a team as a code owner August 18, 2026 19:05
@loganj
loganj marked this pull request as draft August 18, 2026 19:21
@loganj
loganj force-pushed the workstream-board/01-canvas-cards branch 3 times, most recently from f45289d to 4820be0 Compare August 20, 2026 00:02
loganj and others added 5 commits August 20, 2026 14:57
@loganj @claude
feat(desktop): add off-by-default Workstream Board (bullet 1)
00acaf4
Adds the workstreamBoard preview flag, a /workstreams route, and a gated
sidebar destination that surface live loganj-ws-* channel canvases as
minimal cards (channel name, synopsis, orchestrator, assignees). Card
data comes from a single versioned buzz-workstream-card fenced JSON
block per canvas; parse failures (missing block, invalid JSON,
duplicate blocks, unknown version, invalid/missing fields) degrade
only that card to channel metadata plus an inline unavailable state.

Discovery reuses useChannelsQuery with a plain name-prefix filter and
no creator/membership filter; per-card data reuses useCanvasQuery.
Split AppSidebarProps out into the existing AppSidebar.types.ts
companion file to keep AppSidebar.tsx under the repo's 1000-line
file-size ratchet after adding the new sidebar wiring.

Scope is limited to bullet 1 of the Workstream Board spike: no
liveness, PR status, waiting-on resolution, or sorting.

Signed-off-by: loganj <loganj@squareup.com>
Co-authored-by: Claude Code <noreply@anthropic.com>
@loganj @claude
fix(desktop): exclude archived channels from workstream board discovery
ce9adfe
sq agents review flagged that the prefix-only discovery filter let an
archived loganj-ws-* channel keep appearing as an active board card.
Every other active-channel surface in this codebase (sidebar, search,
channel browser, agent autocomplete) excludes archivedAt !== null, so
apply the same rule here.

The review's second finding — one relay canvas query per rendered card
via useCanvasQuery — is the contract's specified design ("per matching
channel canvas fetch via existing canvas query/API paths") for this
bullet; batching/limiting canvas fetches is left for a later slice
rather than implemented as an unscoped addition here.

Signed-off-by: loganj <loganj@squareup.com>
Co-authored-by: Claude Code <noreply@anthropic.com>
@loganj @codex
fix(desktop): align workstream card identity schema
ebed129
Signed-off-by: loganj <loganj@squareup.com>
Co-authored-by: Codex <noreply@openai.com>
@loganj
fix(desktop): restrict workstream discovery to members
0caaa62
Signed-off-by: loganj <loganj@squareup.com>
@loganj
test(desktop): scroll sidebar drag source into view
ab58a51
Signed-off-by: loganj <loganj@squareup.com>
@loganj
loganj force-pushed the workstream-board/01-canvas-cards branch from 4820be0 to ab58a51 Compare August 20, 2026 15:13
